Project Description
HT3563 series battery testers are designed for the new measurement requirements of the battery industry. They are special for measurement use in low-resistance batteries, large-scale lithium battery packs and fast product sorting in production lines.
The HT3563 series is capable of simultaneously checking internal resistance (IR) and battery voltage (OCV) at high speed. The product has high resolution, good stability, short test cycle, exquisite appearance, powerful function and various types of interfaces, which make it suitable for product development and automation production line.
With the technology advantage of Hopetech in battery internal resistance testing for many years, HT3563 series are able to offer a high resolution of 0.1uΩ and minimum resolution of 10uV.
Model HT3564 high voltage battery tester has maximum test voltage of 1000V.
Equipment with its standard features RS232C and hander interfaces, HT3563 series offer automatic measurement on batteries and a max measurement speed up to 50 times/sec.
- The 3563 series and 3564 have the same appearance and size, only their test voltage is different
- Resistance minimum resolution 0.1uΩ, minimum voltage resolution 10uV
- Minimum test cycle only 10mS
- The maximum test voltage up to 1000V (HT3564 only)
- Standard various interfaces for automatic test equipment
- Strong anti-interference ability
- AC four-terminal method, measure low-resistance in high-precision
- Available automatic test function

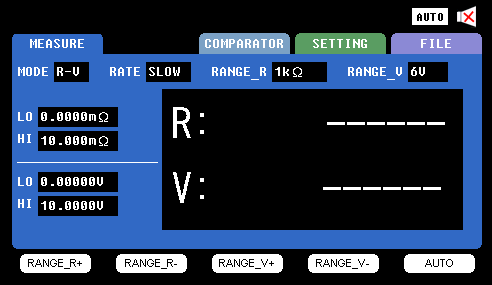

3563 Battery Tester Operation Interface
3563 Battery Tester Measurement Setting Page
HT3563 Battery Tester Comparator Settings
| Model | HT3563 | |
| Display | 4.3 inch TFT-LCD display | |
| Measurement parameters | ACR,DCV | |
| Resistance | Accuracy | 0.3% |
| Range | 0.1μΩ ～ 3kΩ | |
| Voltage | Accuracy | 0.01% |
| Range | 10μV～60V | |
| Signal Source | Measurement current frequency:1kHz; Open circuit voltage:<5V;Test current:<100mA | |
| Range | 7 different ranges-3mΩ,30mΩ,300mΩ,3Ω,30Ω,300Ω,3KΩ; | |
| Auto and manual modes are available in each range | ||
| Measuring speed | 100 meas/sec.,50 meas/sec., 20 meas/sec., 3 meas/sec. | |
| Calibration | Short-circuit reset for all ranges; | |
| Comparator | 30 sets of data records, 4 bins sorting, bin count | |
| Others | data/report save, USB disk export, | |
| Trigger mode | Internal/manual/external/bus trigger | |
| Interface | RS-232/485, Handle (PLC interface), USB, Ethernet | |
| Power supply | Voltage: 100VAC～256VAC; Frequency: 50Hz～60Hz; | |
| Power(max) | 15VA | |
| Dimension(L*W*D) | 325 mm*215 mm*96.5 mm | |
| Weight | 3 kg | |
| Standard accessories | HT9363A test clip, HT9800 communication cable,PB36 connector, power cord | |
- Inspection of high-voltage battery pack and battery module
- High-speed mass production inspection of various batteries
- For large, medium and small (low impedance) component inspection and high volume production inspection
- Special fuel cell stack inspection
- Research and development measurement for batteries
- Simultaneously check internal resistance (IR) and battery voltage (OCV) at high speed
Fast sorting in automatic lithium battery production line
Thanks to HT3653 high precision and functional design, Hope Instrument battery tester is the tailor-made solution for your battery internal resistance and voltage test, small scale battery formation, capability grading, battery pack testing, etc.
With the rapid development of electronic products like cell phones, laptops, new energy electronic vehicles and other portable electronic devices, there is a higher need in batteries manufacturing. Meanwhile the requirement for batteries has become higher and more accurate. Hope instrument HT3563 reliable precision internal resistance battery tester is suitable to offer fast sorting in battery automatic production line and greatly help battery manufacturer to improve productivity under good product quality control.
HT9363A Test clip
HT9800 Communication Cable
Power Cord
PB 36 Connector
- More models for difference specification available
| Model | HT3563 | HT3563A | HT3563B | HT3564 | |
| Display | 3.5 inch TFT-LCD display | ||||
| Measurement parameters | ACR,DCV | ||||
| Resistance | Accuracy | 0.30% | |||
| Range | 0.1μΩ ～ 3kΩ | ||||
| Voltage | Accuracy | 0.01% | |||
| Range | 10μV～60V | 10μV～300V | 10μV～800V | 10μV～1000V | |
| Signal Source | Measurement current frequency:1kHz; Open circuit voltage:<5V;Test current:<100mA | ||||
| Range | 7 different ranges-3mΩ,30mΩ,300mΩ,3Ω,30Ω,300Ω,3KΩ;Auto and manual modes are available in each range | ||||
| Measuring speed | 100 meas/sec.,50 meas/sec.,20 meas/sec., 3 meas/sec. | ||||
| Calibration | Short-circuit reset for all ranges; | ||||
| Comparator | 30 sets of data records, 4 bins sorting, bin count | ||||
| Others | data/report save, USB disk export, | ||||
| Trigger mode | Internal/manual/external/bus trigger | ||||
| Interface | RS-232/485, Handle (PLC interface), USB, Ethernet | ||||
| Power supply | Voltage: 100VAC～256VAC; Frequency: 50Hz～60Hz; | ||||
| Power(max) | 15VA | ||||
| Dimension(L*W*D) | 325 mm*215 mm*96.5 mm | ||||
| Weight | 3 kg | ||||
| Standard accessories | HT9363A test clip, HT9800 communication cable,PB36 connector, power cord | ||||
Expanded multi-channel battery tester HT3563-12 and HT3563-24
To expand HT3563 Battery Tester to 12-channel or 24-channel Multi-channel tester for supporting tool for automated production line or batch testing requirement. The built-in card is 12 channels per card.
HT3563 Multi-channel Battery Tester
The HT3563 -12H/24H multi-channel battery tester can quickly complete the internal resistance and voltage sorting test of the maximum 24-channel battery. Based on the identical test circuit of the classic HT3563, the test speed and accuracy of this device are in leading position of the industry. They are the ideal supporting tool for automated test manufacturers.
Fast sorting in automatic lithium battery production line
Thanks to HT3653 high precision and functional design, Hope Instrument battery tester is the tailor-made solution for your battery internal resistance and voltage test, small scale battery formation, capability grading, battery pack testing, etc.
With the rapid development of electronic products like cell phones, laptops, new energy electronic vehicles and other portable electronic devices, there is a higher need in batteries manufacturing. Meanwhile the requirement for batteries has become higher and more accurate. Hope instrument HT3563 reliable precision internal resistance battery tester is suitable to offer fast sorting in battery automatic production line and greatly help battery manufacturer to improve productivity under good product quality control.
HT3563 series instrument comes standard with RS232/RS485/LAN and I/O interface, especially suitable for supporting automatic equipment to complete automatic test.
The HT3563 multi-channel resistance tester can be used for both single-channel test and multi-channel test; They support single-card 12-channel in four-terminal test and max of 24-channel test
- Standard interface for automatic test equipment
- Strong anti-interference ability,
- AC four-terminal method, high-precision measure low-resistance
- Automatic test function
- High resolution and good stability
- High resolution 0.1uΩ
- Maximum test voltage up to 300V
When the battery manufacturers need more than 24-channel testing for muliti-channel sorting or serveral batteries pack, the extrnal muliti-channel scanning card is a perfect soulition for you.The card has 10~64 channels.
Example wiring:
Diagrm wiring for 3563 multi-channel Battery Tester Using 64-channel Scanning Card
Specification Selection Table
| Model | Channel | Application | Performance characteristics | |
| HT3563 | Single | General use | Single test for all sizes of batteries | |
| HT3563 -12H | MOSFT | 12-channel | Single cell battery | Fast scanning speed, durable MOSFT |
| Relay | Battery pack in series | Slower speed and high pressure resistance | ||
| HT3563 -24H | MOSFT | 24-channel | Single cell battery | Fast scanning speed, durable MOSFT |
